Understanding restoration terminology helps homeowners and property managers make informed decisions about their stone, concrete, and specialty surfaces. This glossary defines the most common terms used in professional surface restoration — from honing and polishing to densification and efflorescence. Whether you are dealing with etched marble countertops, worn concrete floors, deteriorating grout, or crumbling masonry, knowing the language of restoration empowers you to ask the right questions and evaluate contractor proposals with confidence. Rose Restoration has been restoring surfaces across Virginia, Maryland, and Washington DC for over 40 years, and we believe an educated client is our best client.
Stone & Marble Restoration Terms
Honing
Honing is the process of smoothing a stone surface using diamond abrasive pads or discs to produce a matte or satin finish. It is performed in progressive stages — from coarser grits to finer ones — and is used to remove surface scratches, etching, and minor lippage. Honing differs from polishing in that it stops at a lower grit level, leaving a flat, non-reflective surface. It is the preferred finish for high-traffic marble floors because it is more forgiving of everyday wear.
Polishing
Polishing is the final refinishing step that brings a stone surface to a high-gloss, reflective finish using very fine-grit diamond abrasives or polishing powders. The process refines the microscopic surface texture until it mirrors light. On marble and limestone, polishing reveals the full depth of color and veining. Because a polished surface shows fingerprints and minor scratches more readily than a honed surface, it is best suited for countertops, vanities, and low-traffic floors.
Etching
Etching is chemical surface damage that occurs when acidic substances — lemon juice, vinegar, wine, coffee, or even hard water — come into contact with calcium-carbonate-based stones such as marble, limestone, and travertine. The acid dissolves the polished surface layer, leaving dull, light-colored spots or rings. Etching is not a stain; it is physical surface damage and cannot be removed by cleaning alone. Professional honing and re-polishing, or the application of a protective coating such as Marble Armor, are required to correct or prevent it.
Sealing
Sealing refers to the application of a penetrating (impregnating) sealer that fills the microscopic pores of natural stone to reduce its absorbency and resist staining from oils and liquids. Sealers work below the surface and do not create a visible film or alter the stone’s appearance. Importantly, a standard sealer does not prevent etching — only a surface-barrier product can do that. Most sealers require reapplication every one to three years depending on traffic and use.
Marble Armor

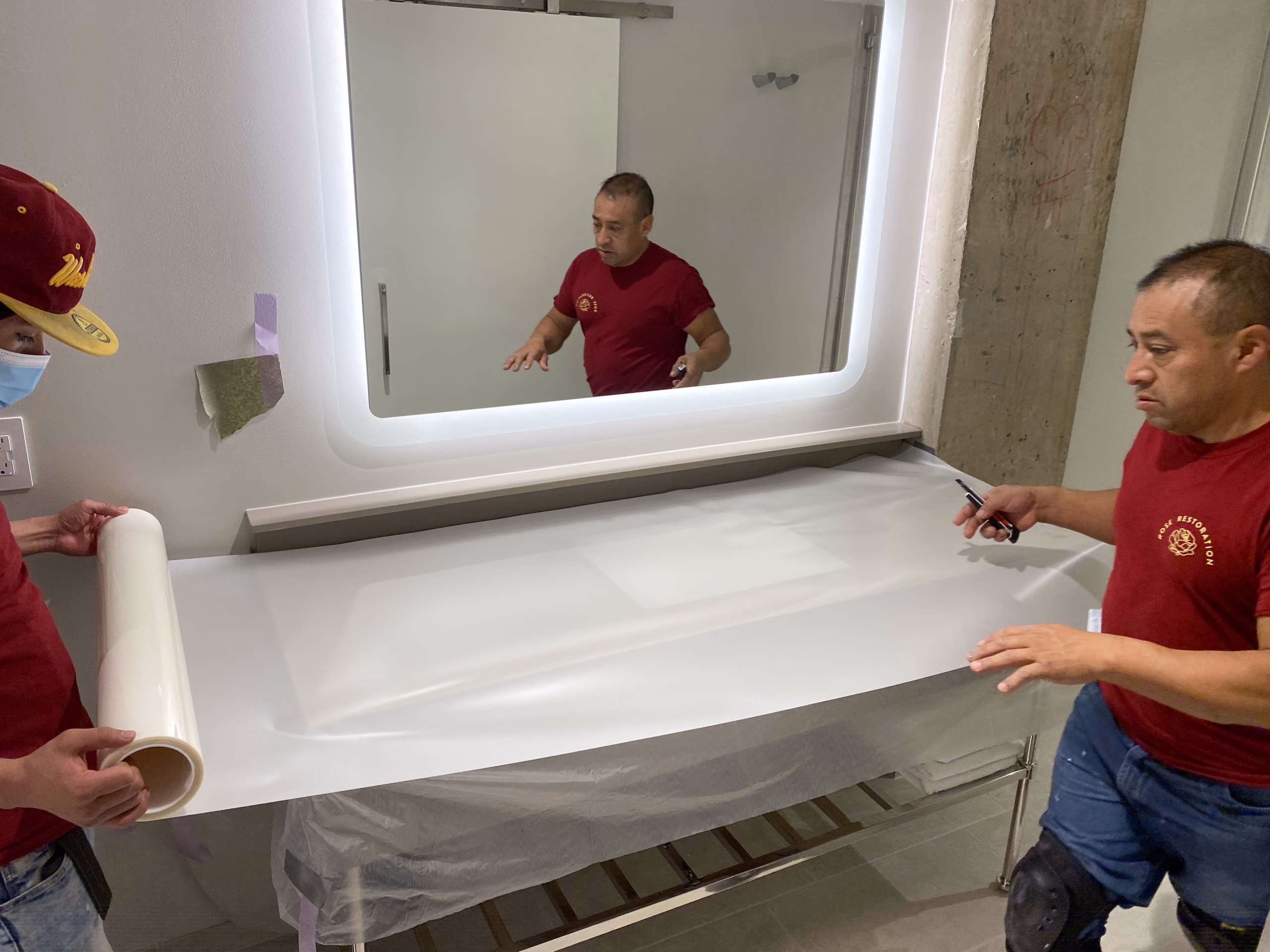

Marble Armor is a proprietary surface-level protective coating developed and applied by Rose Restoration that shields marble, limestone, and travertine countertops from both etching and staining. Unlike penetrating sealers, Marble Armor creates a durable barrier on top of the stone surface that deflects acids before they can react with the calcium carbonate beneath. The result is a countertop that looks and feels like natural stone but resists everyday kitchen and bathroom hazards. It is the most comprehensive protection available for polished calcite stone surfaces.
Lippage
Lippage describes the condition in which the edge of one tile or stone slab sits noticeably higher or lower than its neighboring piece, creating an uneven, trip-hazard surface. It is typically caused by improper installation technique, an uneven substrate, or differential movement over time. Minor lippage can be corrected by diamond grinding the high edges flush with adjacent pieces, followed by honing and polishing to restore a uniform finish. Severe lippage may require removing and resetting individual tiles.
Poultice
A poultice is a stain-removal paste applied to natural stone to draw deep-set stains out of the pores through a process of absorption and chemical action. It is made by combining an absorbent material — such as baking soda, diatomaceous earth, or flour — with a chemical agent appropriate to the stain type (hydrogen peroxide for organic stains, mineral spirits for oil-based stains). The paste is spread over the stain, covered with plastic wrap, and left in place for 24 to 48 hours before removal. Multiple applications may be needed for stubborn stains.
Calcium Carbonate
Calcium carbonate (CaCO₃) is the primary mineral compound that makes up marble, limestone, travertine, and onyx. It is what gives these stones their distinctive veining, translucency, and workability. However, calcium carbonate is chemically reactive to acids: even mild household acids will dissolve the surface, causing etching. This fundamental chemistry is why acid-based cleaners must never be used on these stones and why protective coatings like Marble Armor are so valuable.
Efflorescence
Efflorescence is the white, chalky, or powdery mineral deposit that appears on the surface of stone, concrete, brick, or masonry when water migrates through the material, dissolves soluble salts within it, and then evaporates at the surface, leaving those salts behind. It is especially common on slate, flagstone, brick, and cast-in-place concrete in areas with moisture infiltration. Efflorescence itself is generally harmless, but it signals the presence of water movement that should be addressed. It is removed with diluted acid washes or proprietary efflorescence removers, followed by sealing to slow recurrence.
Color Enhancement
Color enhancement is the application of a penetrating impregnator formulated to darken and enrich the natural color and veining of dense, non-calcite stones such as slate, bluestone, granite, and quartzite, producing a rich, permanent wet-look appearance without a surface film. Unlike topical coatings, color enhancers do not peel or scratch off. They are popular on exterior flagstone patios and pool decks where a natural stone look is desired but the stone’s color has faded from weathering. The treatment also provides some stain resistance as a secondary benefit.
Aggregate (in Terrazzo)
Aggregate, in the context of terrazzo, refers to the decorative chips or granules embedded in the cementitious or epoxy binder matrix that form the finished surface. Common aggregates include marble chips, glass, granite, mother-of-pearl, and recycled materials. The size, color, and type of aggregate largely determine the terrazzo’s final aesthetic. After placement and curing, the surface is ground flat to expose the aggregate, then honed and polished to the desired sheen. Specifying aggregate type is one of the first decisions in any terrazzo design.
Travertine Filling
Travertine filling refers to the process of repairing the natural voids, pits, and holes that are characteristic of travertine stone. Travertine is a sedimentary limestone formed by mineral springs, and its distinctive voids are either left open (unfilled) or filled with grout or epoxy resin at the time of installation. Over time, filled travertine can lose its filler material, leaving exposed pits that collect dirt. Restoration crews use color-matched grout or resin to re-fill these voids before honing and polishing the surface to a uniform finish.
Crystallization
Crystallization (also called vitrification) is an older marble-finishing technique that uses a steel wool pad and a chemical compound containing fluorosilicates, applied under heat and friction, to create a hard, glossy surface layer on marble and limestone. While it produces a temporary shine, crystallization does not truly restore the stone — it merely masks damage beneath a chemical film that can cloud and discolor over time. Modern diamond honing and polishing produce superior, longer-lasting, and more transparent results and are now the industry standard.
Concrete Restoration Terms
Concrete Polishing
Concrete polishing is a multi-step mechanical process in which a concrete slab is refined using progressively finer diamond-segmented tooling — typically from 30-grit metal bonds up to 3,000-grit resin bonds — to produce a smooth, dense, and reflective floor surface. No topical coating is applied; the concrete itself becomes the finished surface, which means there is nothing to peel, chip, or delaminate. Polished concrete is extremely durable, easy to maintain, and reflects ambient light, reducing the need for artificial lighting in commercial environments.
Densification
Densification is the chemical hardening of a concrete surface achieved by applying a lithium silicate (or sodium/potassium silicate) solution that penetrates the slab and reacts with calcium hydroxide — a natural by-product of cement hydration — to form calcium silicate hydrate crystals within the pores. This reaction increases surface hardness, reduces porosity, and minimizes dusting. Densification is an essential step in the concrete polishing process, typically applied after the intermediate grinding stages and before the final fine-grit polish passes.
Grind and Seal
Grind and seal is a concrete finishing method that combines mechanical diamond grinding — to flatten the surface, open the pores, and expose aggregate — with the application of a topical protective coating such as epoxy, polyurethane, or acrylic. The result is a smooth, uniform floor with a clear or colored seal coat that protects against staining, abrasion, and moisture. Grind and seal is faster and less expensive than full concrete polishing but does rely on a surface coating that will eventually need maintenance or reapplication.
Concrete Staining
Concrete staining is the application of either acid-based stains or water-based dyes to concrete to introduce permanent color. Acid stains contain metallic salts that react chemically with the minerals in the concrete slab, producing variegated, mottled, earth-tone patterns unique to each pour — no two acid-stained floors look exactly alike. Water-based dyes penetrate the concrete and produce more uniform, vibrant colors across a wider spectrum. Both methods require a properly prepared surface and a protective topcoat sealer after application.
Epoxy Flooring
Epoxy flooring is a high-performance floor coating system made from a two-part thermosetting polymer — a resin and a hardener — that are mixed just before application and cure to a hard, chemical-resistant surface over prepared concrete. Epoxy is available in solid colors, metallic pigment blends, decorative vinyl flake, and quartz broadcast systems. It is widely used in garages, warehouses, commercial kitchens, and healthcare facilities for its durability and seamless, easy-to-clean surface. Proper concrete surface preparation is critical; epoxy applied to a poorly profiled slab will delaminate.
Polyaspartic Coating
Polyaspartic coating is a second-generation aliphatic polyurea floor coating used as a UV-stable topcoat over epoxy base coats or as a complete standalone floor system. It cures significantly faster than epoxy — in some formulations allowing return to foot traffic in as little as one hour — and can be applied at lower temperatures, extending the installation season. Polyaspartic coatings resist yellowing from UV exposure, making them ideal for areas with natural light. They are also highly resistant to hot tire pickup, abrasion, and chemical spills.
Microtopping / Overlay
A microtopping (also called a micro-overlay or skim coat) is an ultra-thin cementitious or polymer-modified coating, typically 1/16 to 1/8 inch thick, applied over existing concrete, tile, plywood, or other substrates to create a fresh, decorative surface without demolition. Microtoppings can be troweled to a smooth, seamless finish or textured for slip resistance; they accept stains, dyes, and decorative scoring. They are popular for renovating dated tile floors, countertops, and walls with minimal downtime. Proper crack isolation and substrate preparation are critical to preventing reflective cracking.
Shot Blasting
Shot blasting is a mechanical surface preparation method in which steel shot (small spherical beads) is propelled at high velocity against a concrete surface by a centrifugal blast wheel housed in a self-contained, dust-controlled machine. The impact removes contaminants, laitance, and weak surface concrete while creating a roughened surface profile ideal for coating adhesion. Shot blasting is more aggressive than diamond grinding and is typically used to prepare large industrial or commercial slabs for epoxy or polyurethane coatings that require a higher surface profile (CSP 3–6).
Concrete Surface Profile (CSP)
Concrete Surface Profile (CSP) is a standardized measurement system developed by the International Concrete Repair Institute (ICRI) that rates concrete surface roughness on a scale from CSP 1 (very smooth, like trowel-finished concrete) to CSP 9 (very rough, like exposed aggregate). Different coating systems require specific minimum CSP levels for proper adhesion and long-term performance: thin acrylic sealers may only need CSP 1–2, while thick epoxy broadcast systems typically require CSP 3–4. Specifying and verifying the correct CSP before coating application is a fundamental quality-control step.
Joint Filling
Joint filling is the process of filling control joints, construction joints, isolation joints, and saw cuts in concrete floors with a semi-rigid polyurea filler or flexible elastomeric sealant. Filled joints prevent debris, water, and forklift wheel edges from damaging joint edges, create a smoother ride surface for wheeled traffic, and improve the overall appearance of the floor. Semi-rigid polyurea fillers are preferred in industrial settings because they provide edge support without restraining the natural movement that joints are designed to accommodate.
Spalling
Spalling is the progressive flaking, chipping, or pitting of a concrete surface that occurs when internal stresses exceed the tensile strength of the surface layer. Common causes include freeze-thaw cycles that expand trapped moisture within the slab, corrosion of embedded rebar that forces the surrounding concrete to rupture, deicing salt damage, and improper finishing techniques that trap bleed water at the surface. Minor spalling is repaired with polymer-modified cementitious patching compounds; severe or structurally compromised spalling may require saw-cutting and full-depth slab repair.
Flatness (FF) and Levelness (FL)
Floor flatness (FF) and floor levelness (FL) are numerical measurements defined by ASTM E1155 that quantify a concrete floor’s conformance to a true flat and level plane. FF measures how bumpy or wavy the floor is over short distances; FL measures how well the floor conforms to a specified slope or horizontal plane. Higher FF and FL numbers indicate flatter, more level floors. These measurements are critical in warehouses with narrow-aisle forklifts, retail environments, and any application where flatness tolerances directly affect equipment performance or tile-setting quality.
Masonry & Grout Terms
Repointing (Tuckpointing)
Repointing is the masonry restoration process of removing deteriorated, cracked, or missing mortar from the joints between bricks, stones, or concrete masonry units and replacing it with fresh mortar to restore structural integrity and weathertightness. The term tuckpointing is often used interchangeably in the United States, though technically it refers to a specific decorative technique in which a thin line of contrasting-color mortar is inlaid into a wider joint to simulate finer masonry. Repointing is one of the most important maintenance tasks for masonry structures because failed mortar allows water infiltration that accelerates deterioration.
Mortar Types (N, S, O, M)
Mortar type classifications — established by ASTM C270 — define the compressive strength and flexibility of mortar mixes. Type N is a general-purpose, medium-strength mortar suitable for above-grade exterior and interior applications. Type S is a higher-strength mortar used for below-grade masonry, retaining walls, and applications requiring good bonding to soil. Type O is a low-strength, flexible mortar recommended for interior, non-load-bearing walls and historic masonry where softer mortar is needed to prevent damage to soft brick. Type M is the highest-strength mortar, used for foundations and heavy-load applications.
Color Sealing (Grout)
Grout color sealing is the application of a pigmented, penetrating sealer to existing grout lines that permanently restores or changes the grout color while simultaneously providing stain resistance and reducing future maintenance. It is an excellent alternative to full regrouting when the existing grout is structurally sound but discolored, stained, or inconsistent in color. The process typically involves deep-cleaning and brightening the grout first, then applying the color sealer with a small brush. Results are permanent and the surface is ready for normal use within hours.
Regrouting
Regrouting is the process of mechanically removing existing grout from between tiles using an oscillating tool, grout saw, or angle grinder, then installing fresh grout to restore a clean, consistent appearance. It is required when grout is cracked, crumbling, mold-laden, or missing entirely — conditions that allow water to infiltrate behind the tile assembly. Regrouting is more invasive and time-consuming than color sealing, but it is the only permanent solution when the grout itself has structurally failed. Proper joint depth and surface preparation are essential for the new grout to bond correctly.
Caulking vs. Grout
Grout is a rigid, cementitious or epoxy-based material used to fill joints between tiles on flat, planar surfaces such as floors and walls. Caulk is a flexible, silicone or latex sealant used to fill change-of-plane joints — corners where a floor meets a wall, where a tub deck meets tile, or where countertop backsplash meets the wall. Using grout in change-of-plane joints is a common installation error; because those joints experience differential movement, grout will inevitably crack, allowing water infiltration. The Tile Council of North America (TCNA) requires flexible caulk at all changes of plane.
Efflorescence on Masonry
When efflorescence appears on brick or stone masonry — as white, powdery streaks or crusts on the face of the wall — it signals that water is moving through the masonry, dissolving soluble sulfates or carbonates in the mortar or brick, and depositing them on the surface as the water evaporates. Primary efflorescence appears during initial construction as new masonry dries. Secondary efflorescence appears later and usually indicates an ongoing moisture problem, such as a failed cap, deteriorated flashing, or missing caulk joints. Addressing the water source — not just cleaning the deposits — is essential to a lasting repair.
General Restoration Terms
Restoration vs. Replacement
Restoration is the process of repairing, refinishing, and renewing an existing surface to a like-new or improved condition through professional mechanical and chemical techniques — without removing and replacing the material. Replacement involves demolishing the existing surface and installing entirely new material. Restoration typically costs 70 to 90 percent less than replacement, generates significantly less waste, causes minimal disruption to occupants, and can often be completed in a fraction of the time. For high-value natural stone, terrazzo, and historic masonry, restoration also preserves irreplaceable original material.
Surface Preparation
Surface preparation is the foundational step in any floor restoration or coating project: cleaning, profiling, and conditioning the substrate to ensure that subsequent materials — coatings, sealers, overlays, or polishing compounds — adhere properly and perform as specified. Methods include diamond grinding, shot blasting, acid etching, scarifying, and mechanical scraping, depending on the substrate and the system being applied. Industry standards consistently show that the majority of coating failures are caused by inadequate surface preparation, not product defects. A properly prepared surface is the single most important factor in restoration longevity.
Substrate
The substrate is the underlying structural material upon which a finished surface is installed or applied — for example, the concrete slab beneath a tile floor, the cement board behind a shower wall, or the plywood subfloor under a wood overlay. The condition of the substrate directly affects the performance and longevity of the finished surface above it. Cracks, moisture, contamination, or insufficient strength in the substrate will eventually telegraph through to the surface regardless of the quality of materials or workmanship applied on top.
Topical Coating vs. Penetrating Sealer
A topical coating sits on top of the surface and forms a film that can be seen, felt, and — over time — scratched, peeled, or worn away. Examples include epoxy, polyurethane, and acrylic sealers. A penetrating (impregnating) sealer absorbs into the pores of the substrate and provides protection from within, leaving no visible surface film. Penetrating sealers are preferred for natural stone, concrete, and masonry where a natural look is desired and surface maintenance must remain low. Understanding this distinction helps property owners choose the right protection strategy for their surface type and use.
Slip Resistance (DCOF)
Slip resistance is a surface’s ability to provide traction underfoot and resist slipping, measured by the Dynamic Coefficient of Friction (DCOF). The ANSI A137.1 standard requires a minimum DCOF of 0.42 for floor tiles used in wet conditions. Highly polished stone and smooth coatings can fall below safe DCOF thresholds, especially when wet. Slip resistance can be increased by selecting a honed or textured finish, applying anti-slip treatments, or using a slip-resistant additive in topical coatings. Testing and documenting DCOF is an important risk-management step for commercial and public facilities.
Moisture Vapor Emission (MVE)
Moisture vapor emission (MVE) is the rate at which moisture evaporates from a concrete slab, measured in pounds of water vapor per 1,000 square feet per 24 hours (ASTM F1869) or as relative humidity within the slab (ASTM F2170). Excessive MVE is one of the leading causes of floor coating failures, adhesive bond failure under wood and resilient flooring, and hydrostatic blistering of epoxy systems. Before installing any floor system over concrete, measuring and documenting MVE is essential. Mitigation strategies include surface densification, moisture-mitigating epoxy primers, and vapor-barrier membranes.
E-E-A-T
E-E-A-T stands for Experience, Expertise, Authoritativeness, and Trustworthiness — the framework used by Google’s Search Quality Evaluators to assess the credibility and value of web content. For a specialty contractor like Rose Restoration, E-E-A-T is demonstrated through documented project history spanning 40-plus years, detailed technical content written from direct field experience, verified client reviews, and transparent business information. Content that clearly demonstrates real-world expertise — such as this glossary — is more likely to be surfaced by search engines and cited by AI answer engines as an authoritative source.
Life-Cycle Cost
Life-cycle cost is the total cost of owning, maintaining, and eventually replacing a floor or surface system over its entire useful life, expressed in today’s dollars. A low initial installation cost can be deceptive if the system requires frequent recoating, patching, or early replacement. For example, a polished concrete floor may have a higher upfront cost than a painted floor, but its 20-to-30-year service life with minimal maintenance can make it dramatically less expensive on a life-cycle basis. Evaluating restoration options through a life-cycle lens — rather than upfront cost alone — is the hallmark of informed facility management.
Need Help Understanding Your Restoration Options?
Whether you are dealing with etched marble countertops, worn concrete floors, crumbling grout, or deteriorating masonry, Rose Restoration can assess your surfaces and recommend the most cost-effective solution. We serve homeowners, property managers, architects, and facility teams across Virginia, Maryland, and Washington DC.
Call us at (703) 327-7676 or use our contact form to schedule a free on-site consultation. Our estimators will walk your property, explain your options in plain language, and provide a detailed written proposal — no obligation required.
Contact Rose Restoration today to get started.
